  Ice Lights for Your Bonanza & Night Tip Tank



Beech Lister Kevin O. installed some cool ice lights in his Debonair which not only let's him see his leading edges at night but also illuminates his tip tanks level bands.

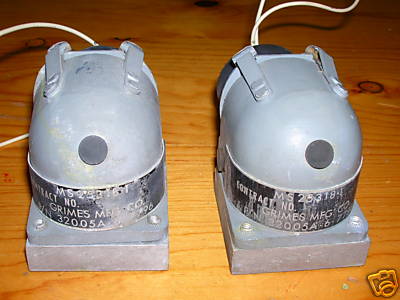

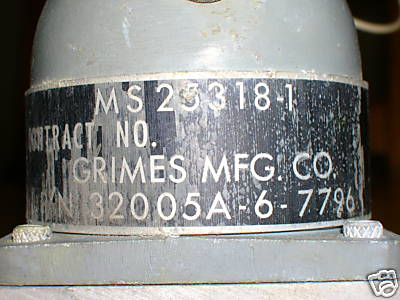

The project starts with these Grimes MS25318-1 ice light fixtures and appropriate 14V or 28V bulbs. These fixtures are the same ones the factory used on Barons that were ordered with the ice light option.






Get busy searching eBay for these. The last set I saw went for $108 for the pair.


Here is a CSOB way to create the light fixture (picture from anonymous)



Very nice Kevin! Thanks for the contribution to CSOBeech.

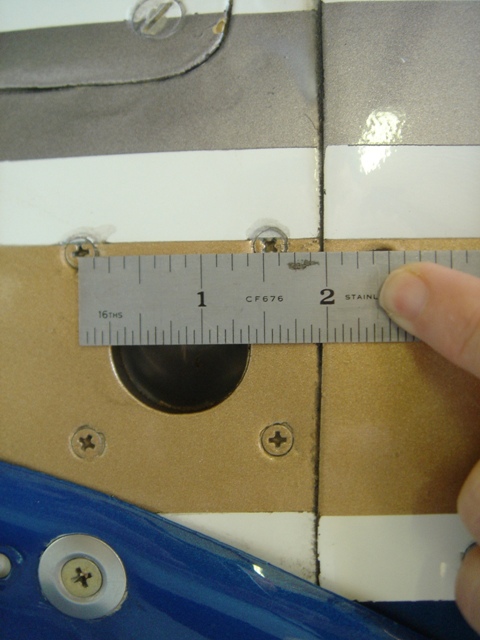

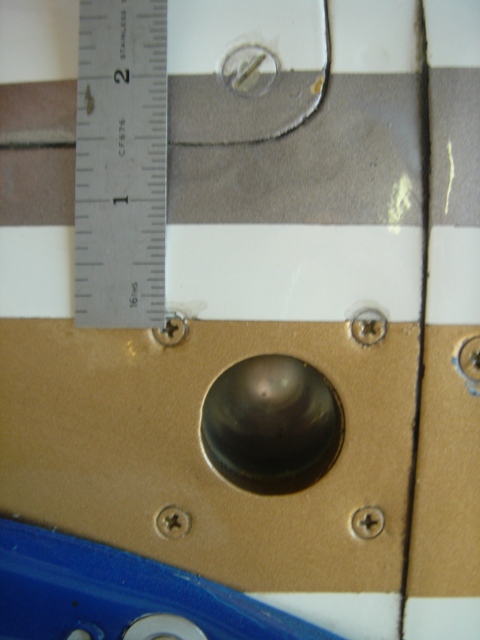

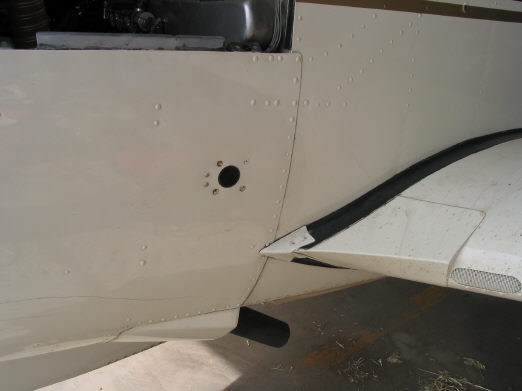

If you are a Baron driver and your plane did not come with ice lights, here are a few pics that will make a factory location placement a little easier.

Click on each image for a larger picture.




Below are pics of a possible 24/28V bulb candidate at a healthy 40W for the ice light housing

A 21W version is shown below
