Transducer Mounting
TCM IO470-520-550

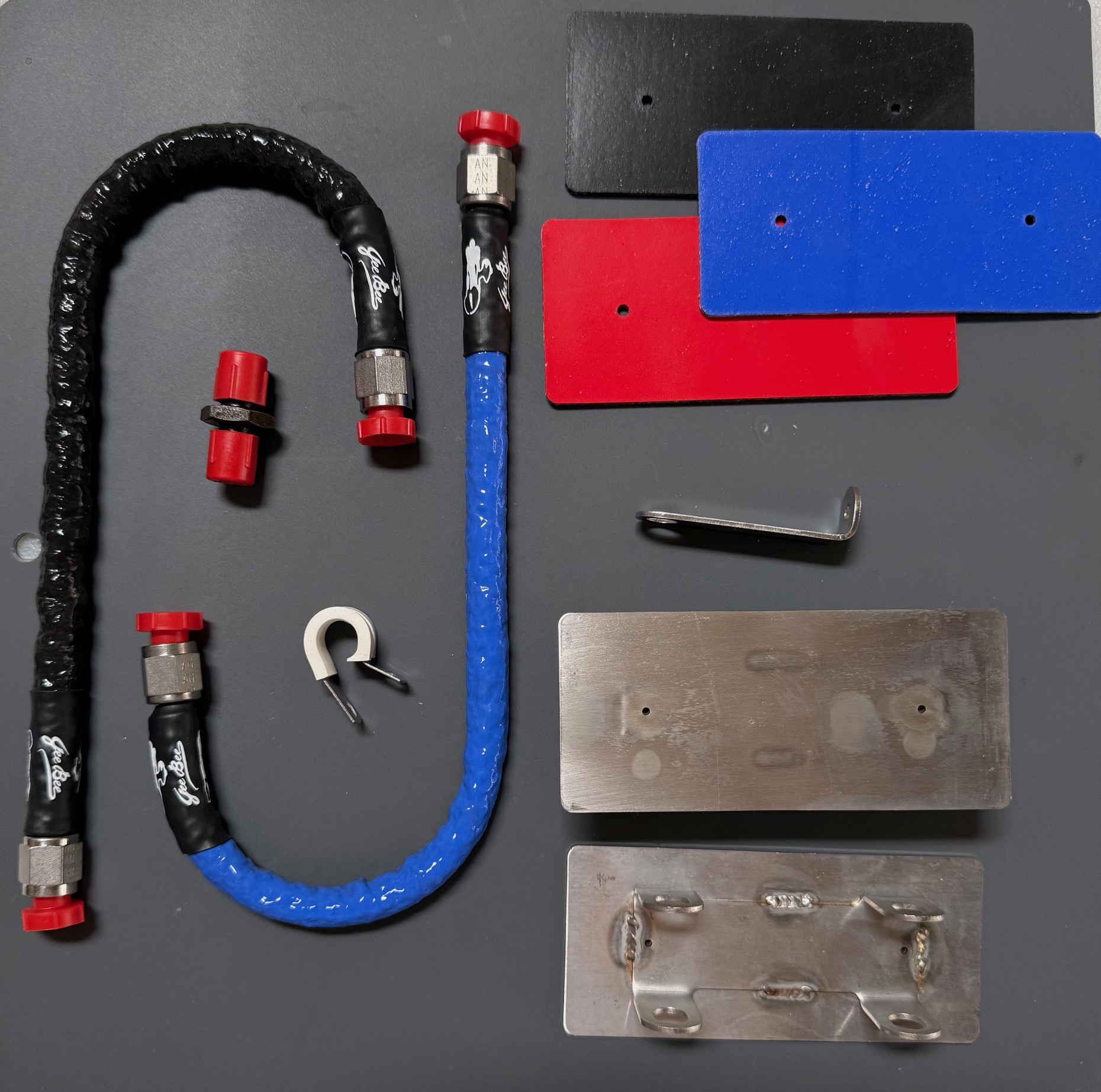

Bracket based on TCM spider bracket
2.0 x 4.5
Trim to your spec
Silicone pad included
Advise color desired
304 tube with firesleeve
Advise color desired
Support bracket for tube
With adel clamp
AN Adapter hose to Tube

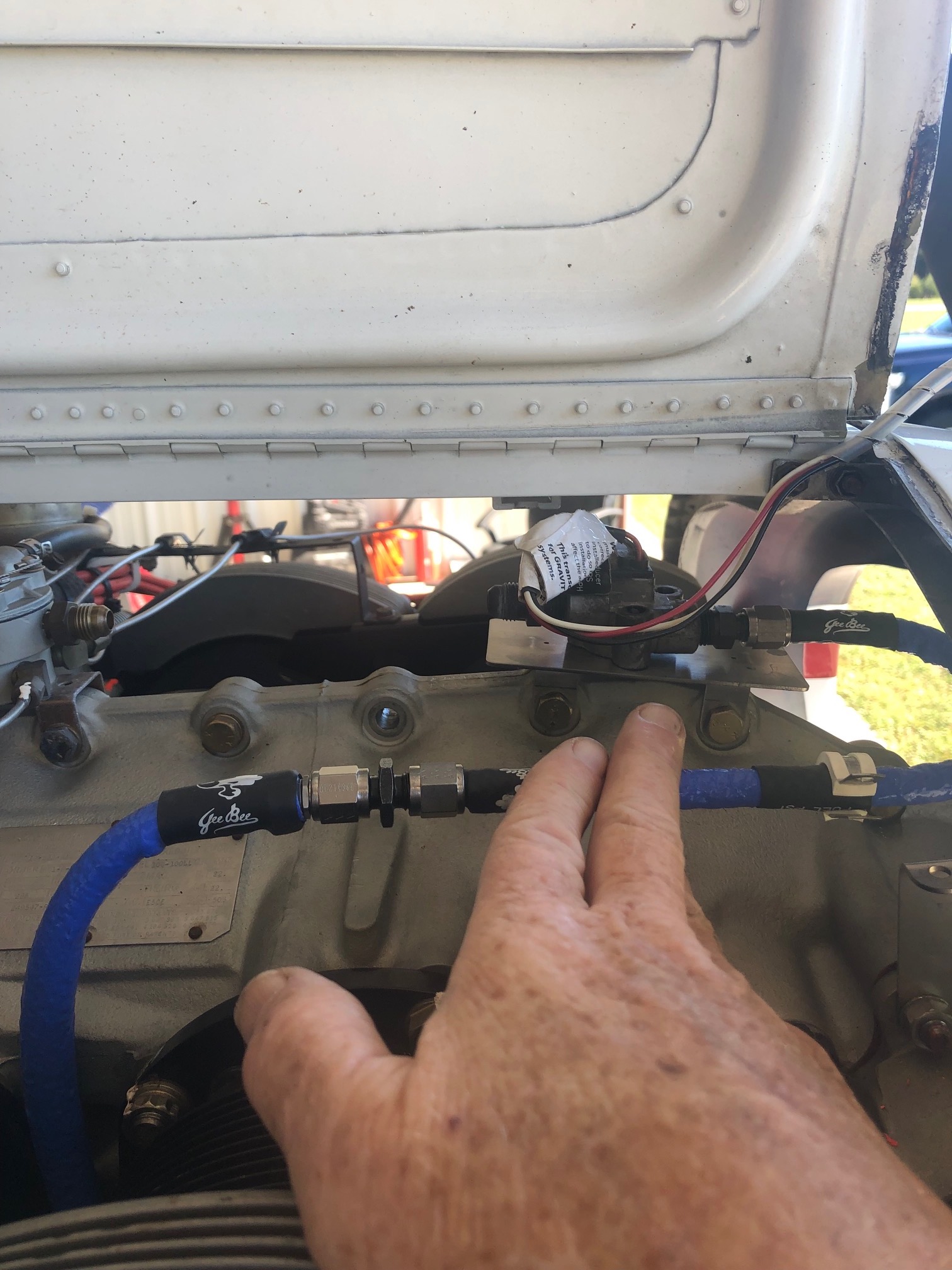

After transducer is installed
Advise your hose length for TSO hose assembly

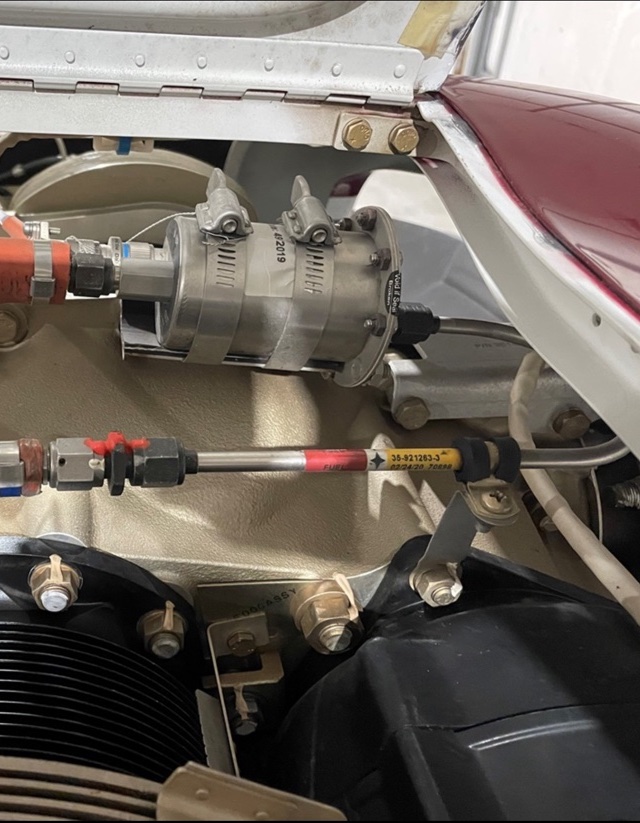

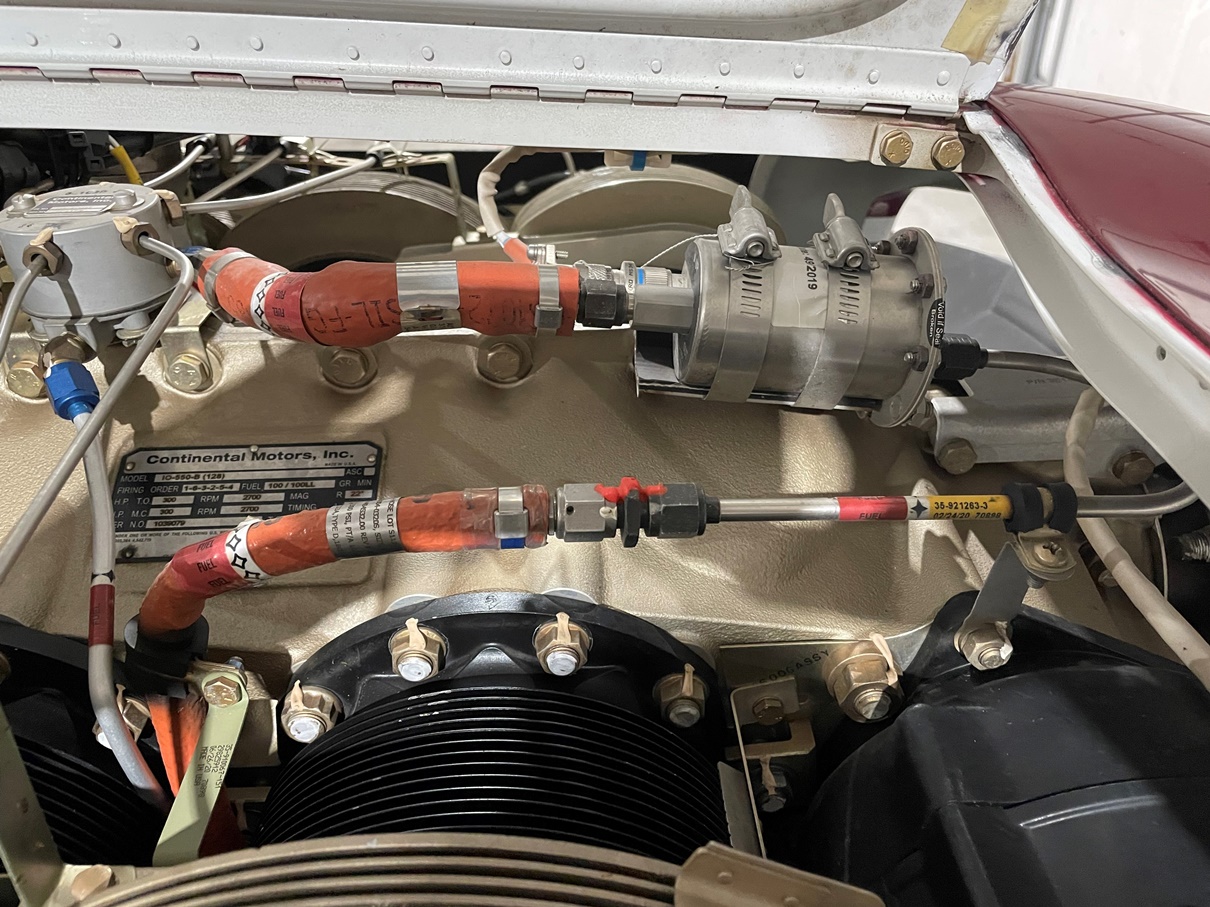

This install will keep all hose and adapters straight/ no elbows.
This is based on late 1984 on up OEM/TSO installation.
$277.50* shipped
*Hose is additional after the installation (6” to 7” length)
