  CSOB Cylinder & Valve Inspection Camera







The above video was done by BeechTalker Joe Fischetti, with an amazing little "dental camera" that sells for just over $100 and connects to your computer!





The item is sold on  HERE for $116 as of 21 May 2011.






Below, courtesy of the AOPA Air Safety Foundation, is what you are looking for with your new CSOB borescope camera:







HERE is a full size hi-resolution PDF of the above picture, all 5MB of it!






More Borescope Camera Options

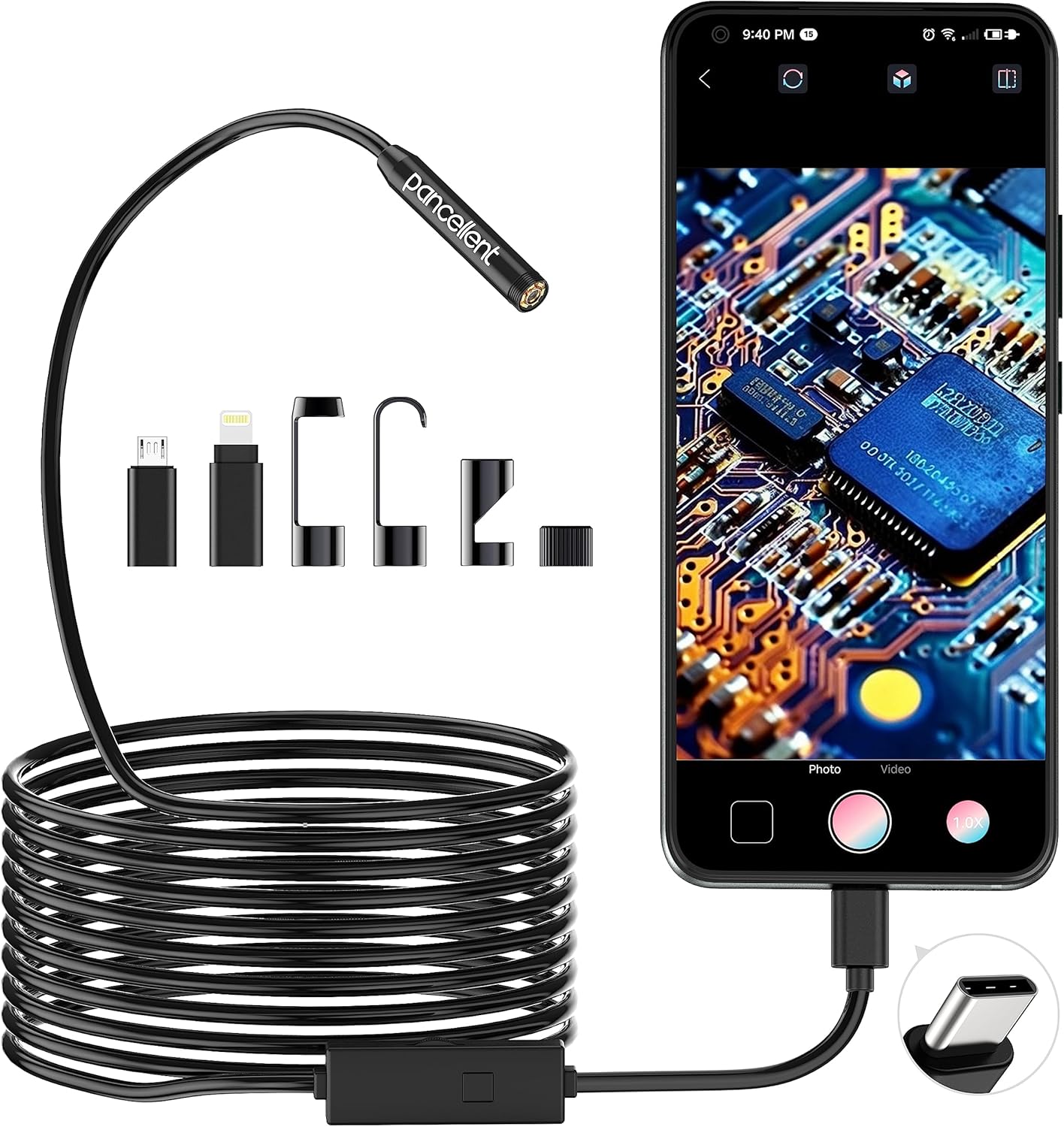

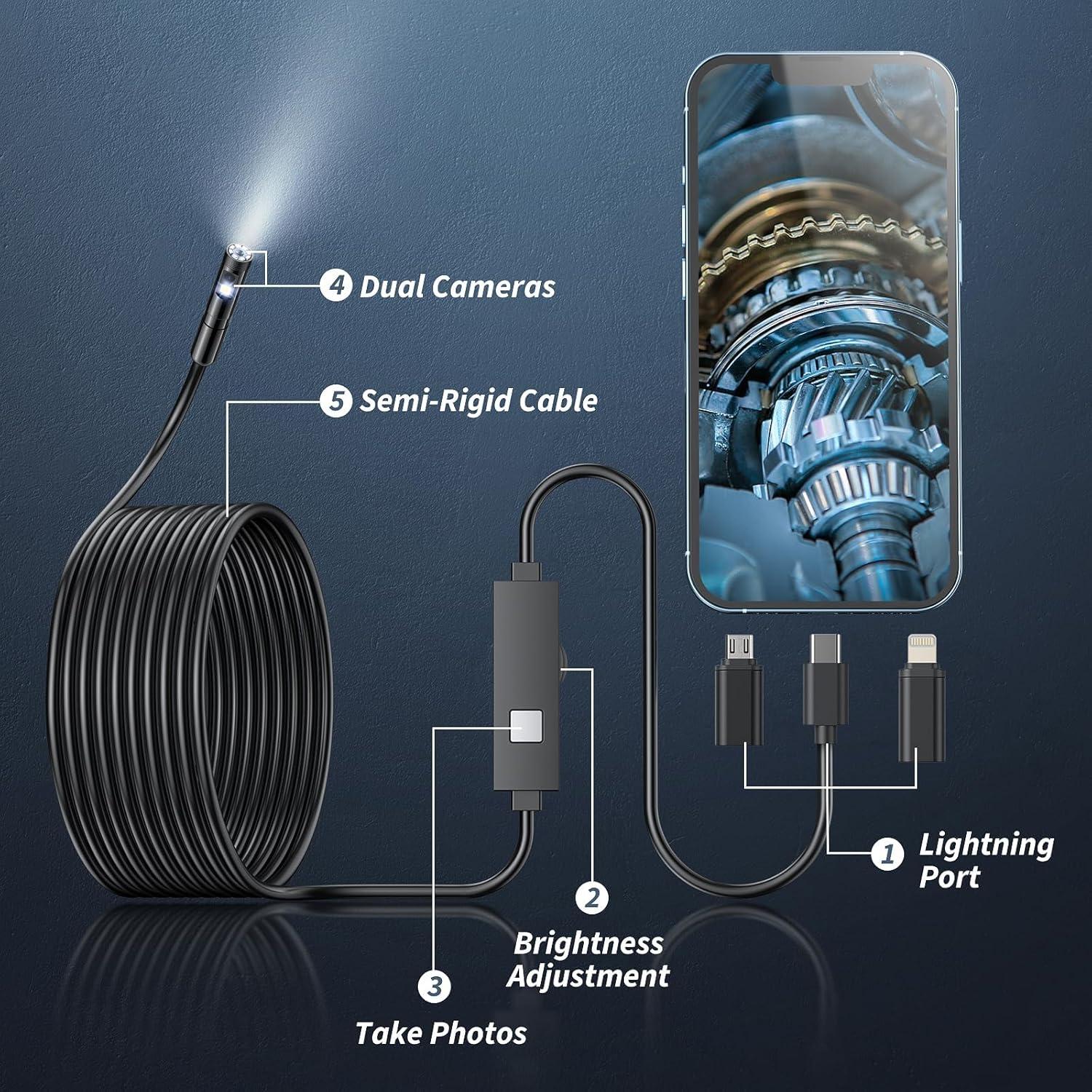

WiFi $88 connects to your Mac and/or iDevice








http://www.aliexpress.com/item/-/32281956040.html  $34.90






$110 Amazon Camera made this video:

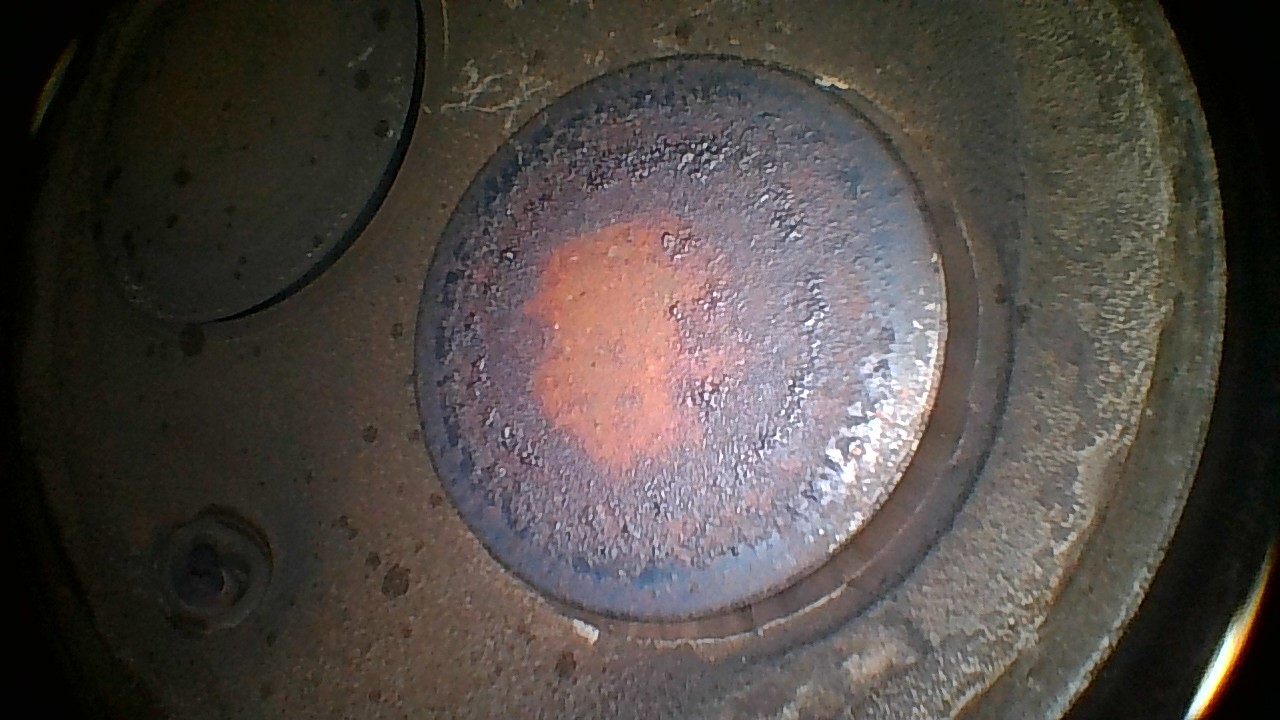

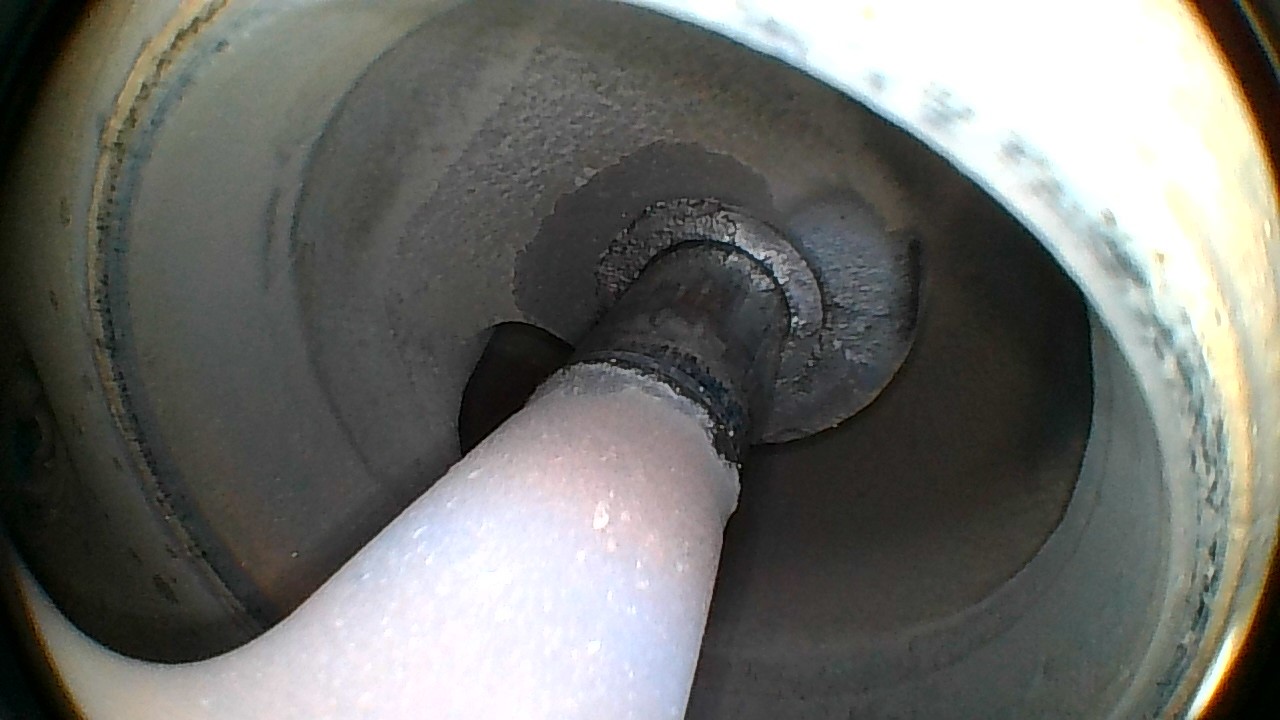

These are some of the kinds of images of valves that can be captured with a "dental" inspection camera to assist you in evaluating the condition of your valve faces and seats. See the entire BeechTalk thread on this topic HERE. Images below also courtesy of BeechTalker Joe Fischetti.







This might be a good tool to suggest to your mechanic or if you are inclined to have one for your own use, I've not seen anything do such a great job for such a CSOB cost.






Joe advises that for better access into the spark plug hole the shaft of the camera needs to be modified or ground down a little. Here is how John W. tackled the problem. Ending up with heat shrink on his end product:











Nice job Joe!






NEWS FLASH March 4th, 2014: The below camera has gotten great pireps from Beech owners and it is now priced at $52!





Here's Jim S.'s 12/21/2013 pirep on the camera from BeechTalk:



Quick summary:



It works great, and is more than adequate for the job.



Longer version:



It plugged into my Mac over USB. The Mac Photo Booth app recognized it readily, and clicking the red button takes the picture.



Pull all the top plugs, turn the prop until the piston is out of the way and the exhaust valve is closed. Put the camera in and snap the pic. You get a live video feed, so you can watch the exhaust valve open and close (provided the piston isn't in the top 30% of travel) and can readily frame up the picture.



Don't smack the camera with the piston. The camera is plastic and would probably break before hurting anything, but don't be dumb.



Below are the pics from today's trial. I did #6 first, and I got better at it on the other 5 cylinders and didn't bother to go re-take #6. All compressions were good. Lowest was 68; all leakage seemed to be ring leakage.



The camera fits in the spark plug hole as it comes, but it's snug I'm going to gently file or sand down the corners a bit to make it drag less on the threads, but it definitely went in right out of the box.



Hope this helps. (BTW, dx.com seems legitimate to me; I've ordered from them 3x and never had a problem with fraud, but my first order with them raised my "fraud yellow alert" spidey-sense.)

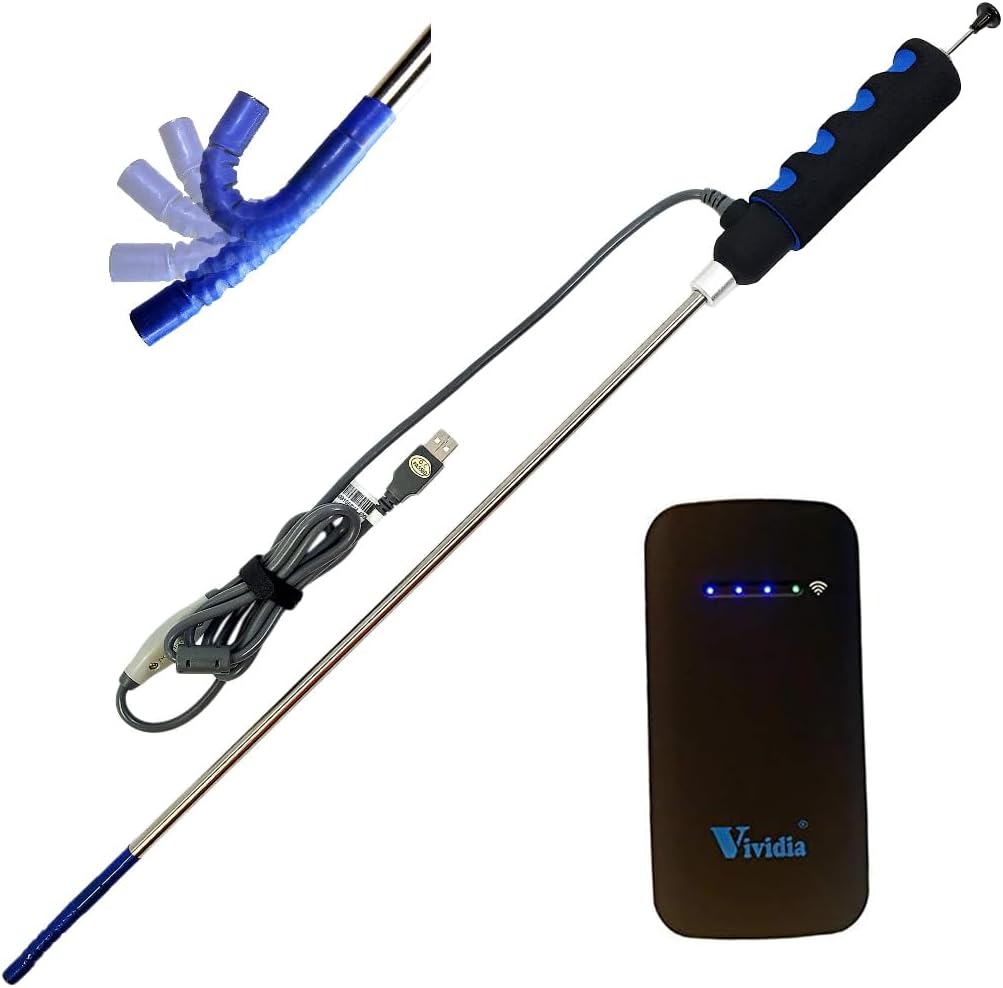

Here's another bore scope inspection camera that has gotten good pireps from Beech owners. The 5.5mm head makes for an excellent size to get into the TCM cylinder spark plug hole and it's priced at $160 on 6/14/2014!
