Because Owning And Flying Your Beechcraft Can Be Done Safely AND For Less Money!
  Gee Bee Emergency Window & Baggage Door Seals



Beechcraft E-Window Seals





Early & Late Bonanza Emergency Window Seals

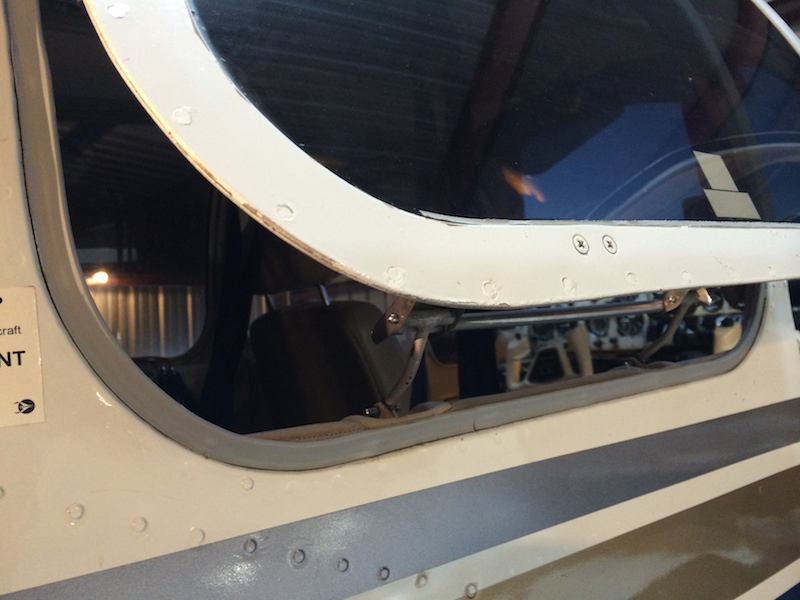

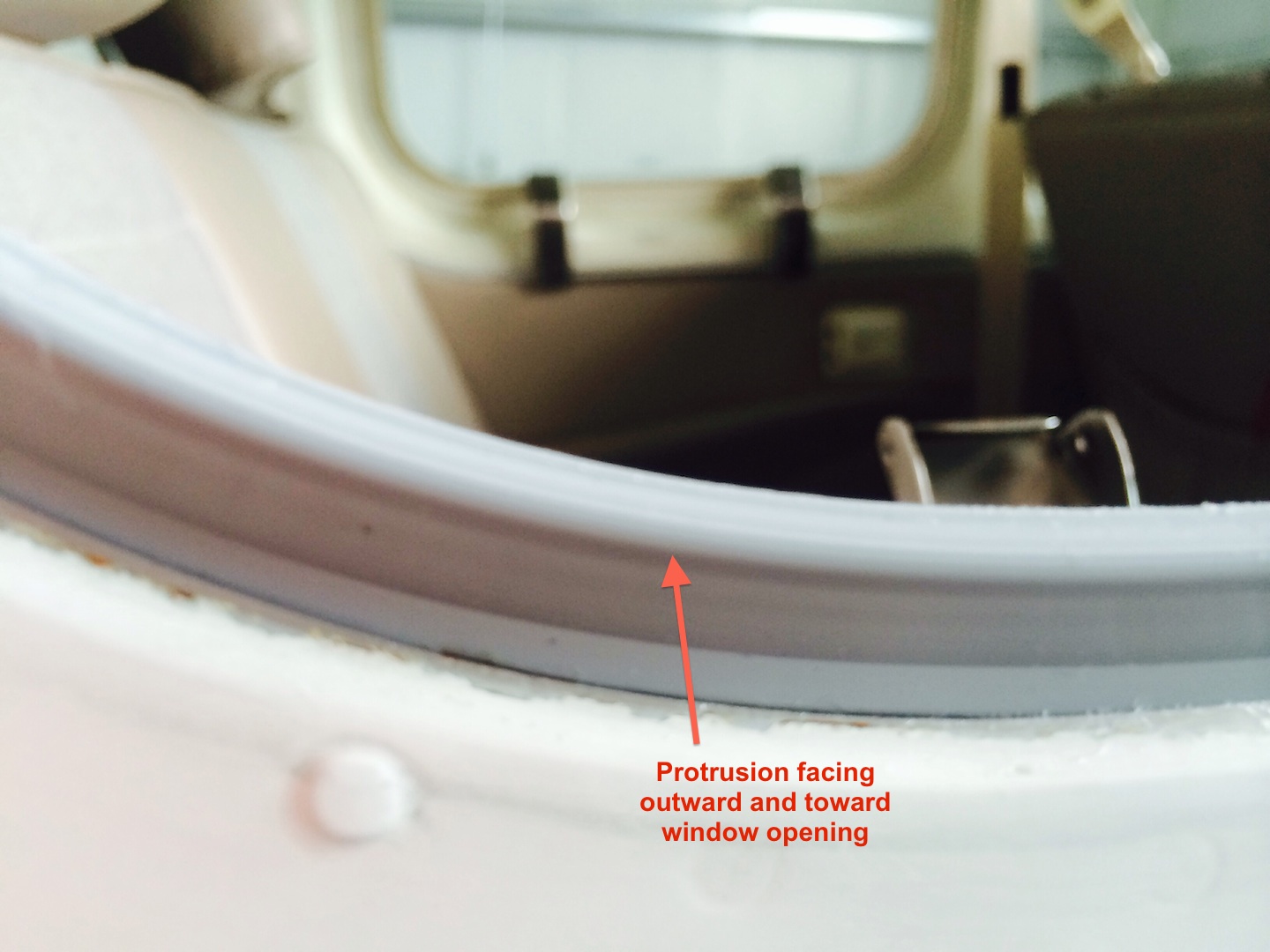

Finished Seal - Note Butt Cut in Lower Window





PRE-1974 (mount flat to frame) Sold by the foot (Call for Pricing)

BEECH PART # S152

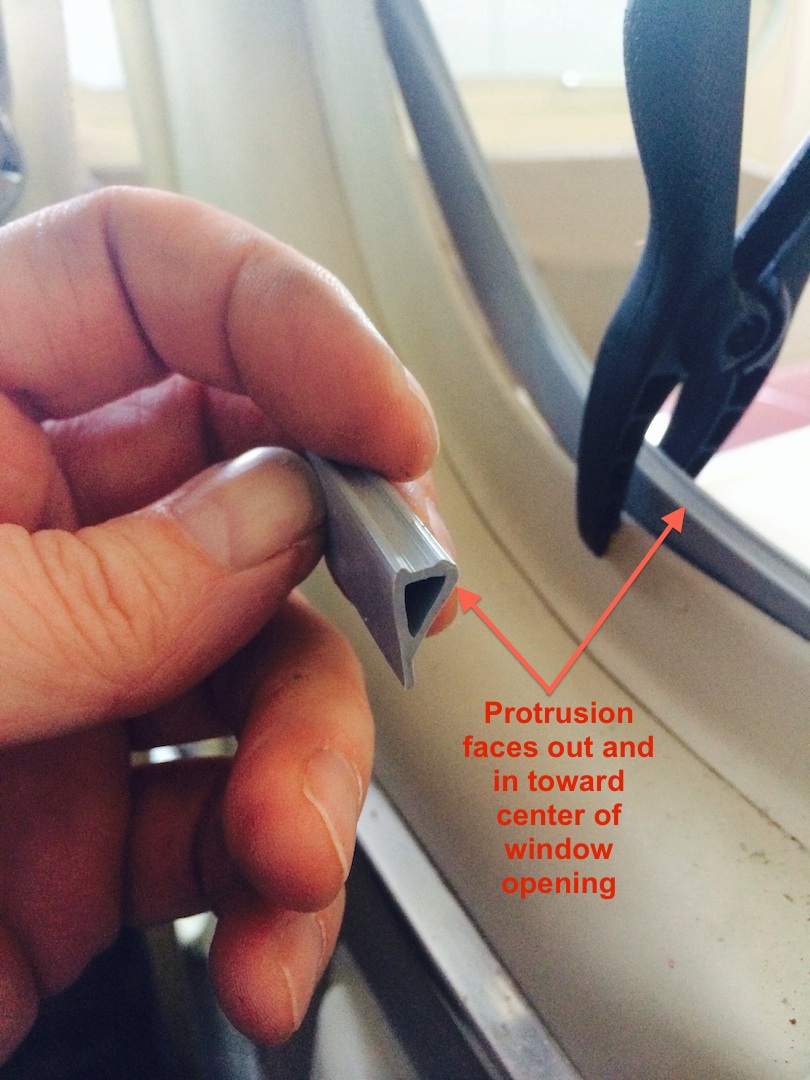

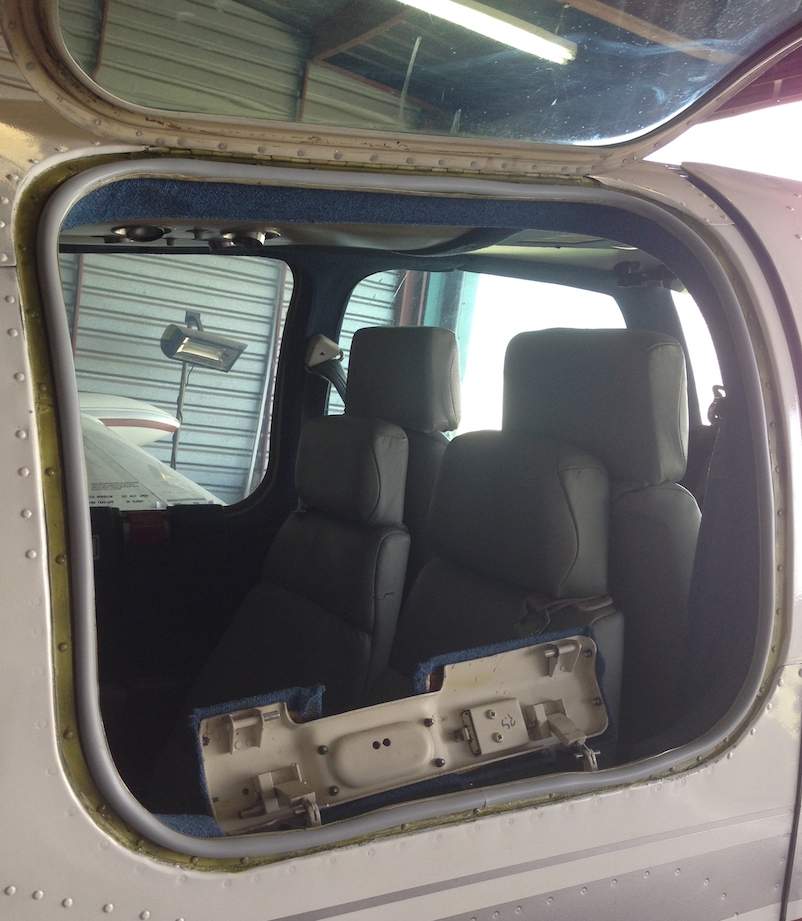

LATE MODEL E-WINDOW SEALS (mount in a channel) Sold by the foot, (Call for Pricing)



GREY SILICONE AMS3304, INCLUDES CEMENT



After decades, those emergency window seals are crushed and likely not doing such a great job. This is a great project for annual or anytime you find the window seals cracked, leaking or creating wind noise in the cabin.



Emergency Window Seal Pirep



When I was doing my research I found great info on door seal installation but not so much about the rear seat, emergency exit windows. While I'm going to do them all, the emergency exits are top priority because years ago someone used an automotive type double sided seal that stuck the windows in place. Stuck emergency windows are not ideal and I'm embarrassed i didn't realize it earlier.

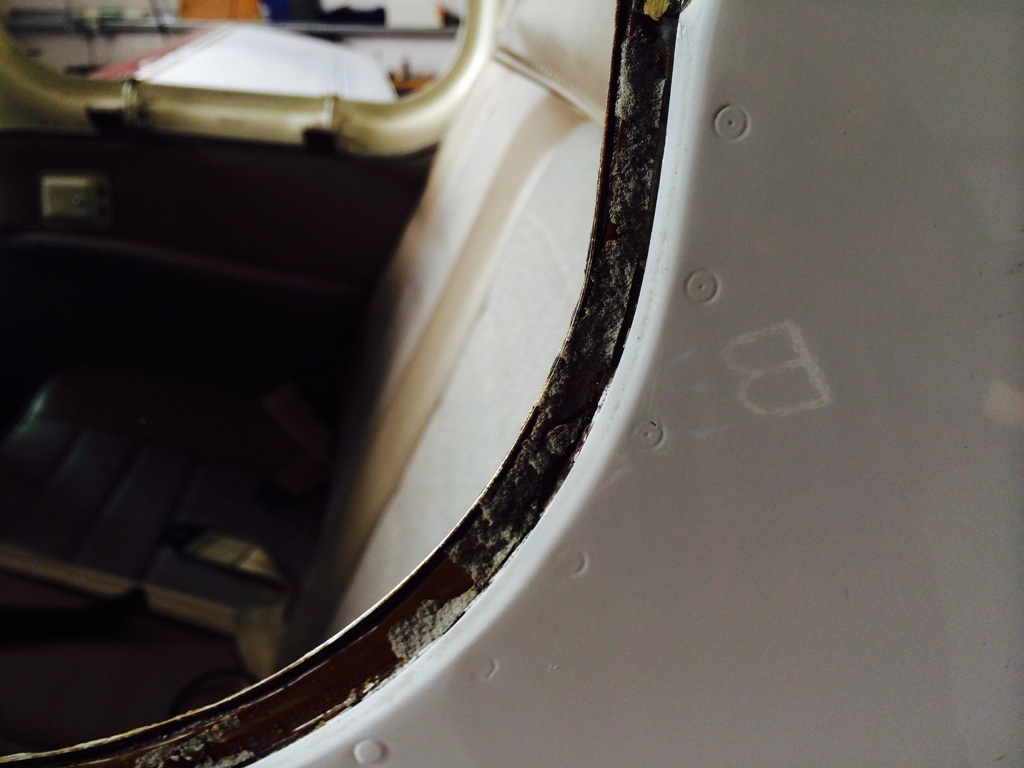

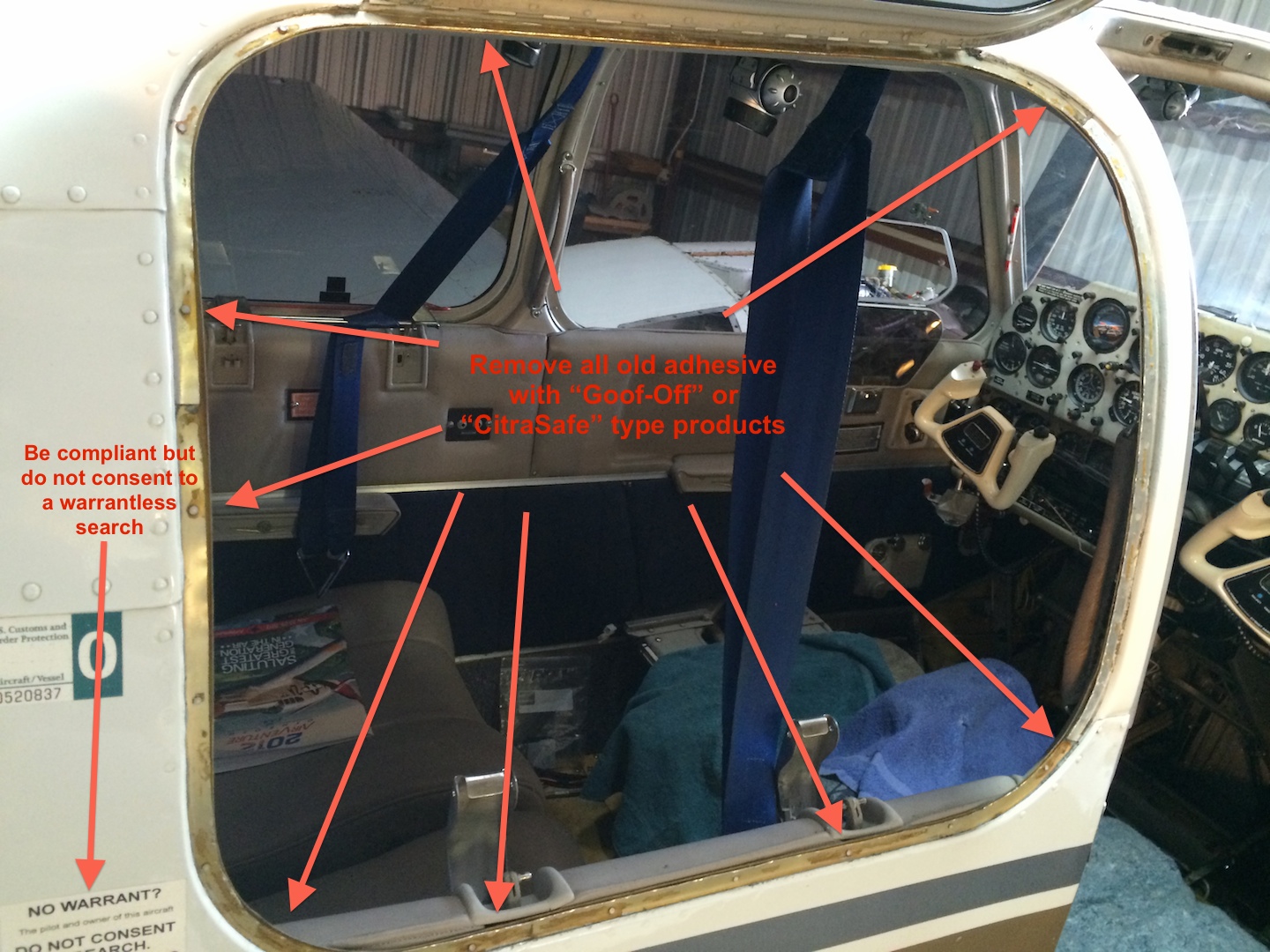

Guy's instructions call for removing the old adhesive and doing so is a slow process. I found the best progress was made by starting with a razor blade to shave off as much old adhesive as I could then I used a 1/2" strip of Scotch-Brite with a few drops of Goo-Gone that I got from Home Depot. It's still slow but patience pays. As you can probably tell from my pictures, I removed the windows to make access easier and because there is seal material stuck on the window side. (Most installations shouldn't have this issue if the correct seals were always used.)



Oh, one other tip. Mixing the two part adhesive that Guy includes is done at the ratio of 1oz adhesive to 1 drop accelerant (PS: Guys little bottle of clear silicone cement is 2 ounces). I thought a small plastic food service type container would be perfect for mixing small batches. Not so, 30 seconds after combining them the bottom of my container dropped out leaving me with a sticky mess on the hangar floor. Guy suggested a clean cut Coke can and that proved to work perfectly. Mixing the glue and applying it to both surfaces was done with a disposable acid brush also from Home Depot.









BT'er Mark M.

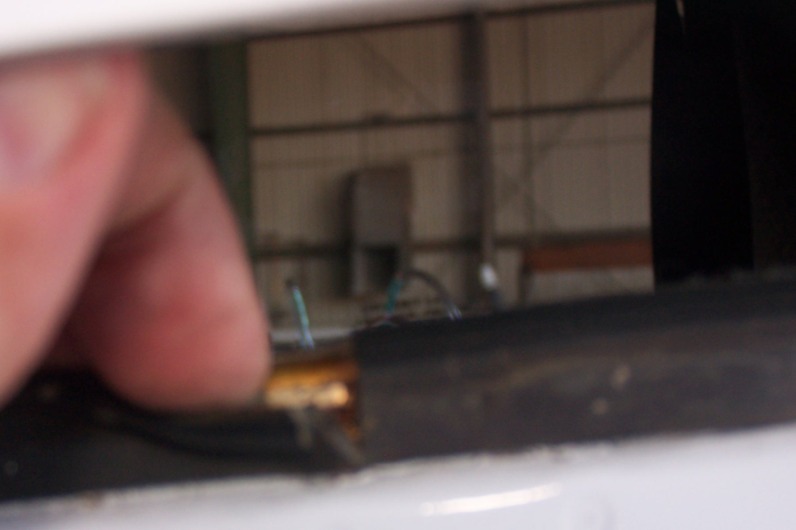

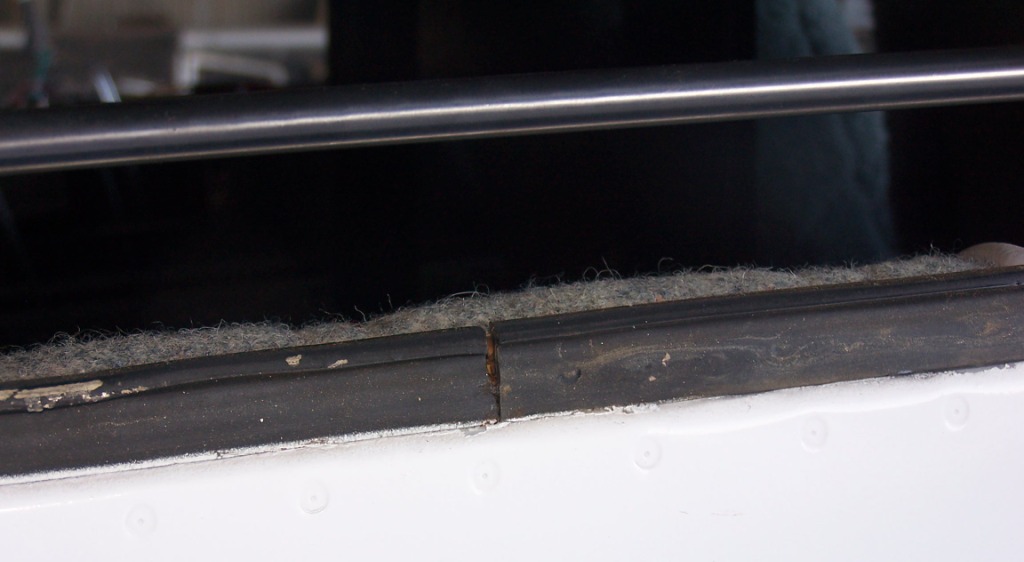

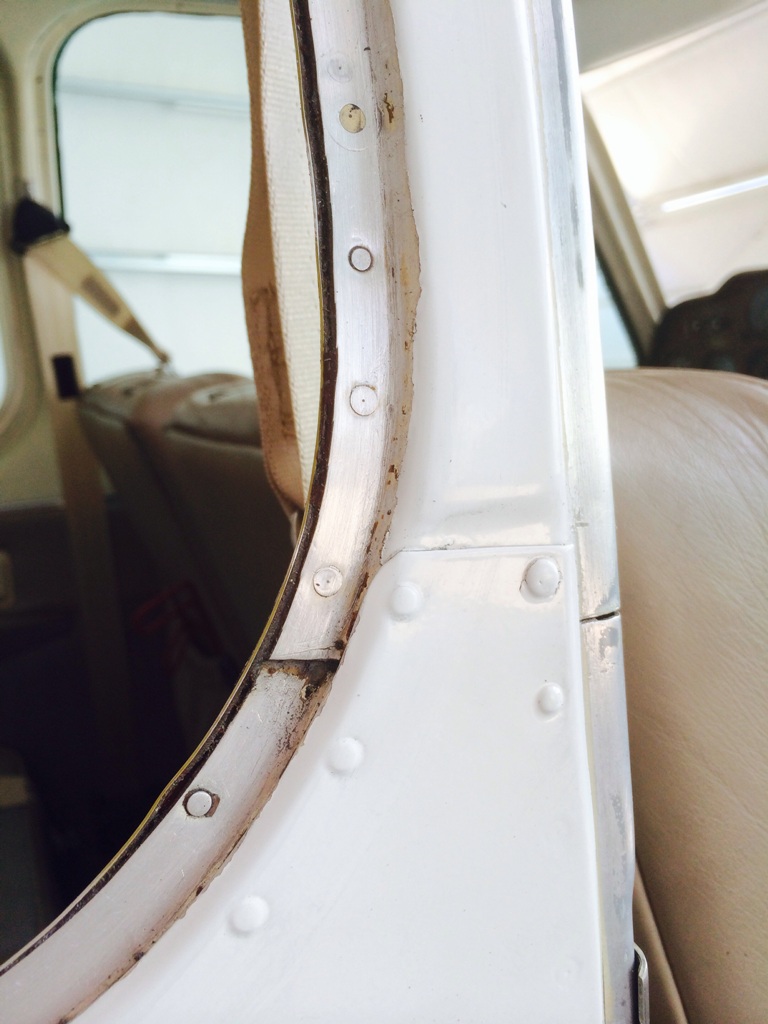

Here are original S152 emergency exit window seals eroding badly and wearing into rivet

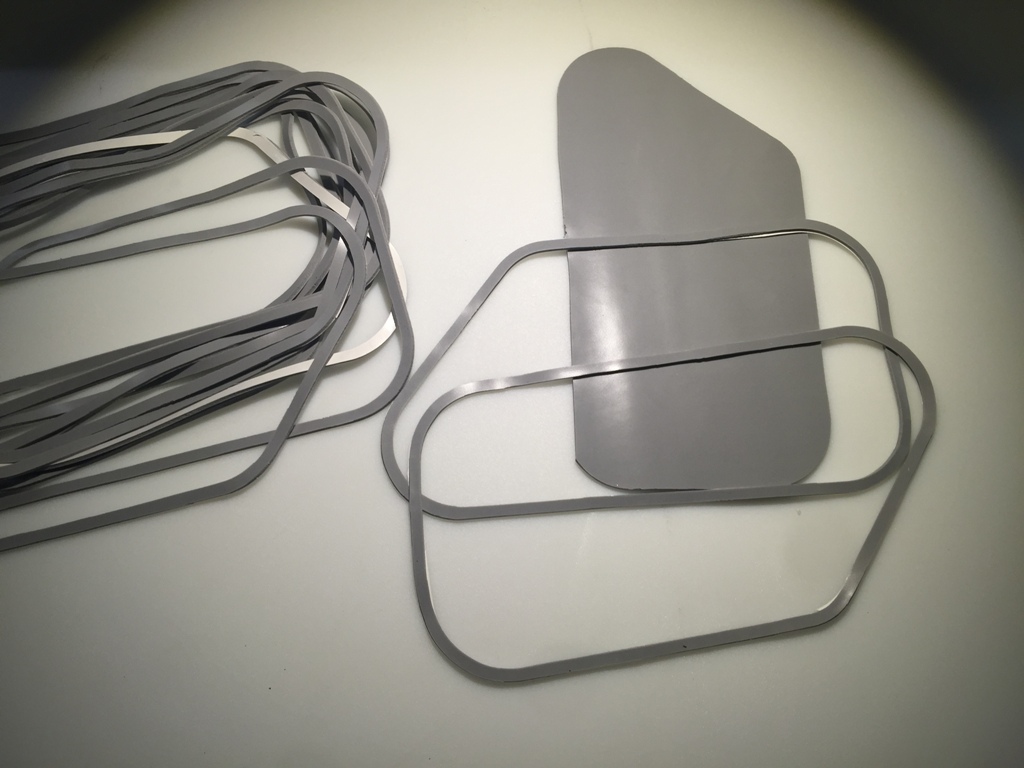

Die Cut Vent Window Seals







AMS 3195 SILICONE



DIE CUT w/PEEL & STICK ADHESIVE



$35.00 Each



Specify LH or RH Window!






BAGGAGE DOOR SEAL

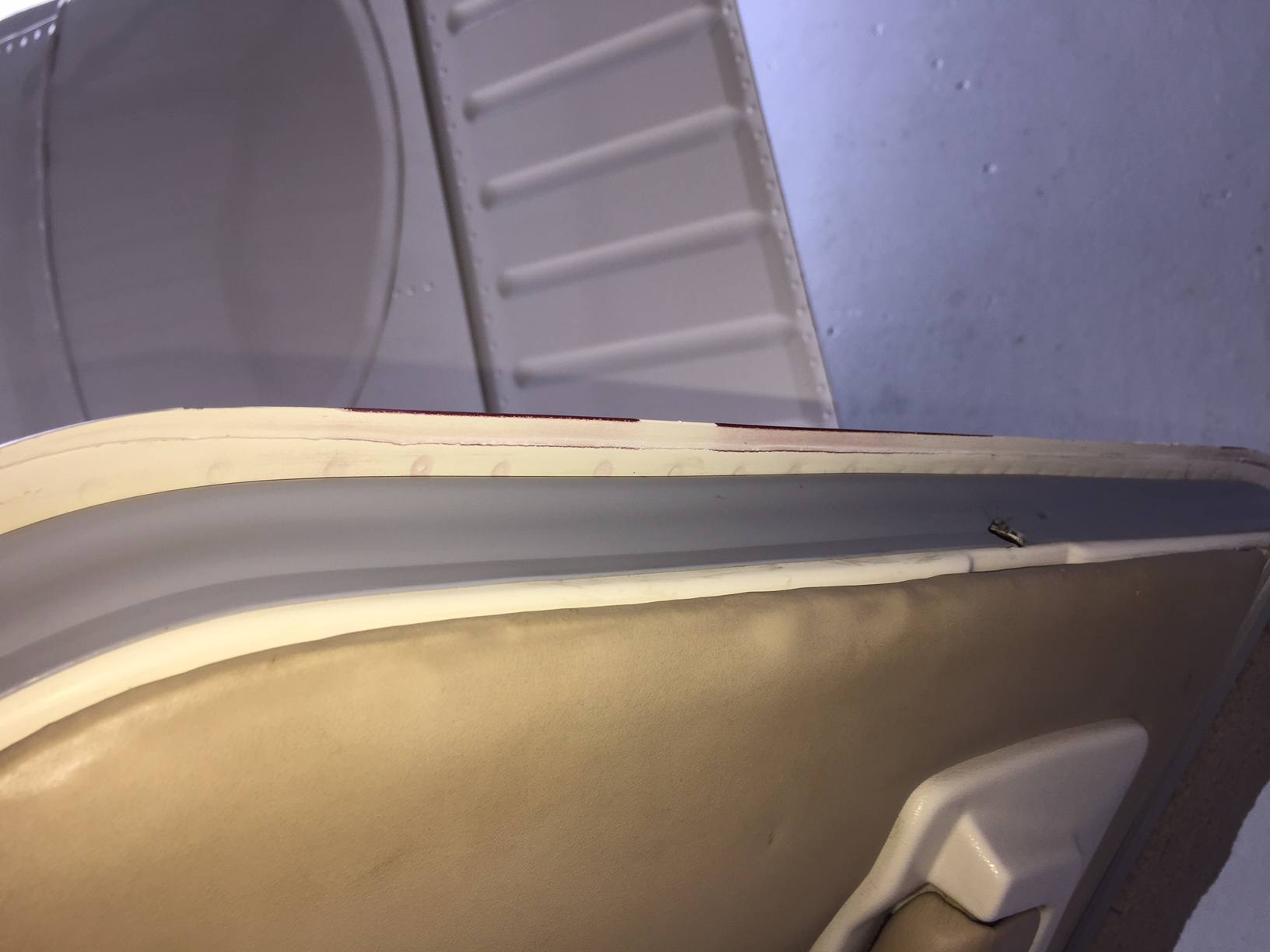

Silicone Baggage Door Seal (correct placement shown)





SMALL BAGGAGE DOOR SEAL $75.00



LARGE BAGGAGE DOOR SEAL $95.00






BARON NOSE BAGGAGE DOOR SEAL

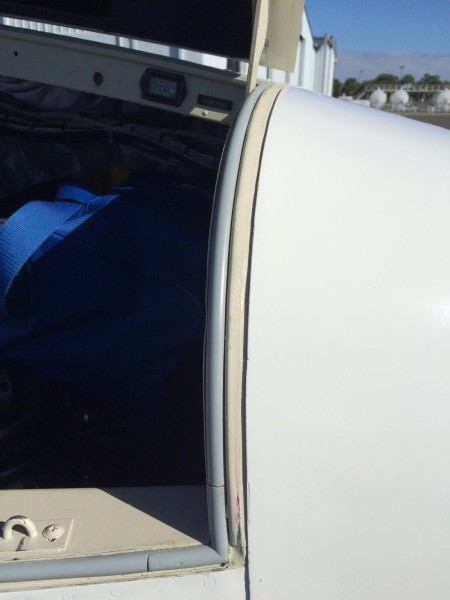

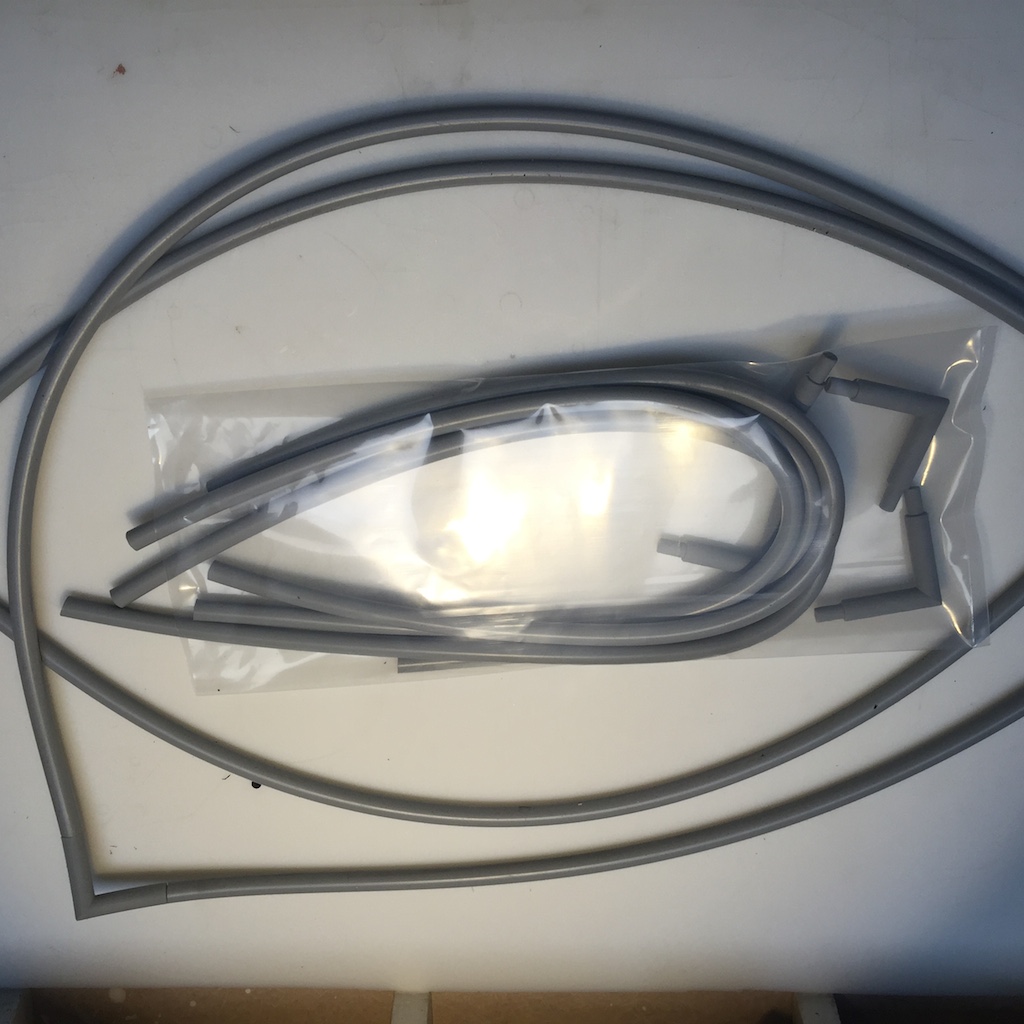

Gee Bee's Baron Silicone Nose Baggage Door Seal (above)



Gee Bee's Baron Nose Baggage Seal (Call for Pricing) (includes clear cement)

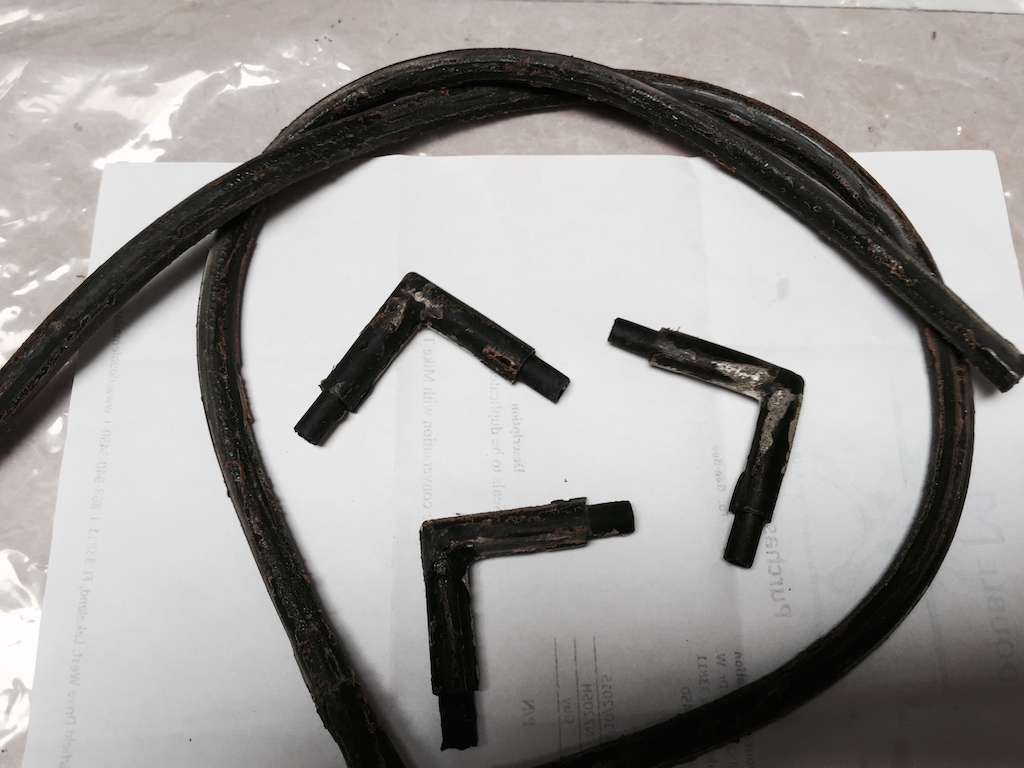

Beech OEM Seal Shown below for Comparison












Guy Ginby - Owner

Click to E-mail Guy or use N77GB@MSN.com

We Accept PayPal to the Above E-mail Address

We Ship FedEx Ground (Requires Phone Number)

Store Minimum Order $105.00
